StellarRAD Handheld-Radiometer

  • Image 1
  • Any Light Emission
What better way to demonstrate a handheld radiometer than to measure a candle flame!  Any type of light emission can be measured by pointing the StellarRAD’s cosine receptor toward the light source, setting the best exposure time and system settings, and pressing capture.
  • LED Quality Control
With so many LEDs being manufactured overseas, if you are a manufacturer or a product integrator and need an instrument to test your arriving LED’s power and wavelength for accuracy of specification and/or consistency, than this is your instrument.
  • Image 4
  • White LED Color
White light, cool white, warm white, incandescent white, LEDs… Just how many different white lights can there be? The StellarRAD automatically calculates Corelated Color Temperature (CCT) and Color Rendering Index (CRI).  Easily distinguish and compare white LED color.
  • Image 6
  • Image 7
  • Image 8
  • Image 9
  • Image 10

Price:
$3,695.00
Weight:
0.25 LBS
Shipping:
Calculated at checkout
Quantity:

Product Description

The StellarRAD is a rugged, turn-key solution for portable light measurement.  This handheld radiometer is an easy to use research grade spectrometer for field testing of lights with no additional setup required. The NIST traceable system can measure spectral Irradiance & Illuminance, CCT, xy chromaticity, CRI, PAR and much more!

Compared to other handhelds, the StellarRAD contains our research grade spectrometers with <1nm spectral resolution making these instruments the first choice in reliable testing, field demonstrations, installations, R&D, and quality control.

  • Reliably measure light output in Lumens/m^2 (Lux), Watts/m2, PAR, PPFD, and Footcandles
  • 1931 CIE Chromaticity Diagram for xy Chromaticity, Dominant Wavelength, Purity, Correlated Color Temperature (CCT), & Color Rendering Index (CRI)
  • Includes NIST Certificate of Traceability and delivered with all calibrations preloaded ready to use
  • UV upgrades (250-1100nm) available; includes UVa, UVb, UVc, ratios, & power for $500
  • Includes Solar Monitoring App with solar and grow light classification
  • Add lens, aperture, and collimating tube attachments for increased functionality
  • StellarRAD+Color Handheld Colorimeter upgrade now available



Handheld SpectroRadiometer for NIST traceable light measurement from 350-1100nm with <1nm spectral resolution. UV and near-infrared ranges are optional. Handheld-Radiometer measures irradiance, illuminance, xy chromaticity, dominant wavelength, CCT, CRI, the complete spectral distribution of all light 350-1100nm, and much more! The handheld system incorporates research-grade BLUE-Wave spectrometer optics. It has an 8", high performance Android touchscreen interface that’s both ergonomic and user-friendly. System comes with pre-installed StellarRAD software and calibration, direct attach SMA-coupler, CR2 Cosine Receptor, IRRAD-CAL irradiance calibration, and certificate. System charging adapter and USB key included.

Click here to generate a StellarNet Official Online PDF Quotation for this product and have it automatically emailed to you.



Sensor: BLUE-Wave spectrometer with 2k pixel detector
Spectrometer range: 350-1150nm (Optional UV @ 250nm)
Spectral Resolution: <1nm
Measurement Range: 0.05-400k Lux/ 0.25-1600W/m^2
Receptor Type: Cosine corrected for Irradiance
Integration time: 10ms to 60s
Digitizer Resolution: 16bit
Optics: Research Grade Crossed Czerny Turner
Wavelength Accuracy: <0.25nm
lluminance Accuracy: +/- 5%, NIST Calibrated
Color Accuracy: +/-0.001 (reference standard lamp)
CCT Accuracy: +/- 2%
Tablet Specs: Android
Software included: StellarRAD App



NIST Calibrations

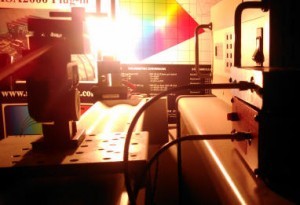

StellarNet Calibration Services

The factory performs calibrations for the StellarRAD using NIST traceable calibration lamps for absolute intensity in Watts/m^2/nm. Absolute calibration: accuracy within 10% at detector integration setting used for calibration.

IRRAD-CAL Certificate is included which contains all pertinent NIST traceable calibration information.

Optional RAD-CAL-SR or Radiance calibration (W/m^2/sr) can be purchased with your StellarRAD.  This type of calibration is often purchased when measuring display screens and backlights. Must also purchase the CRLENS accessory.

Other calibrations can also be purchased with each StellarRAD system. Contact your local technical sales representative for the best configuration for you.

Product Videos

StellarRAD Handheld Radiometer - Color Hurricane (00:17)
New StellarRAD handheld radiometer software features continuous measurement mode as well as full spectrum snapshot.
